An explorative study of design packaging of metal cans for elderly nutrition

Master Assignment

Sep 2023-May 2024

Assignment

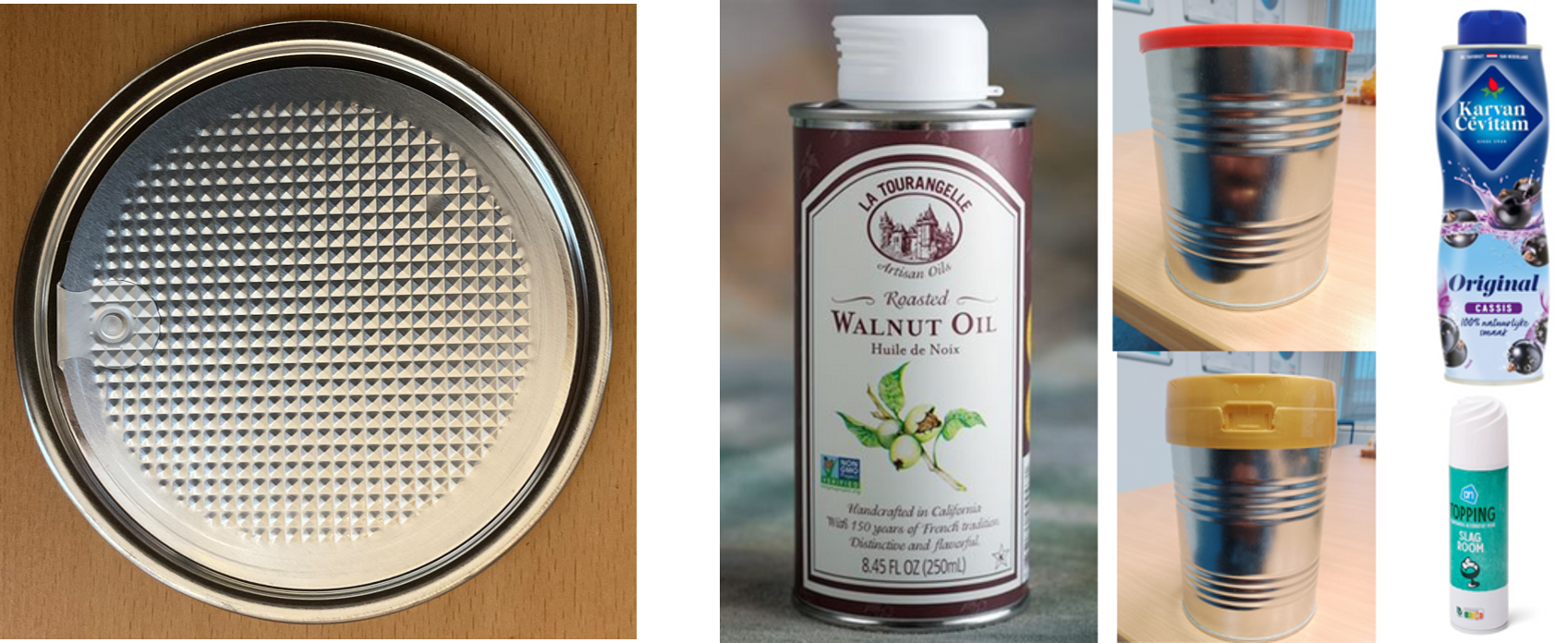

  • How should can packaging be designed for elderly people such that it is easy to open, hygienically re-sealable, easy to handle and shows evidence of tampering? Easy-opening
  • To study the impact of face on packaging. visual-graphics

Research Phase

Use and user study 1

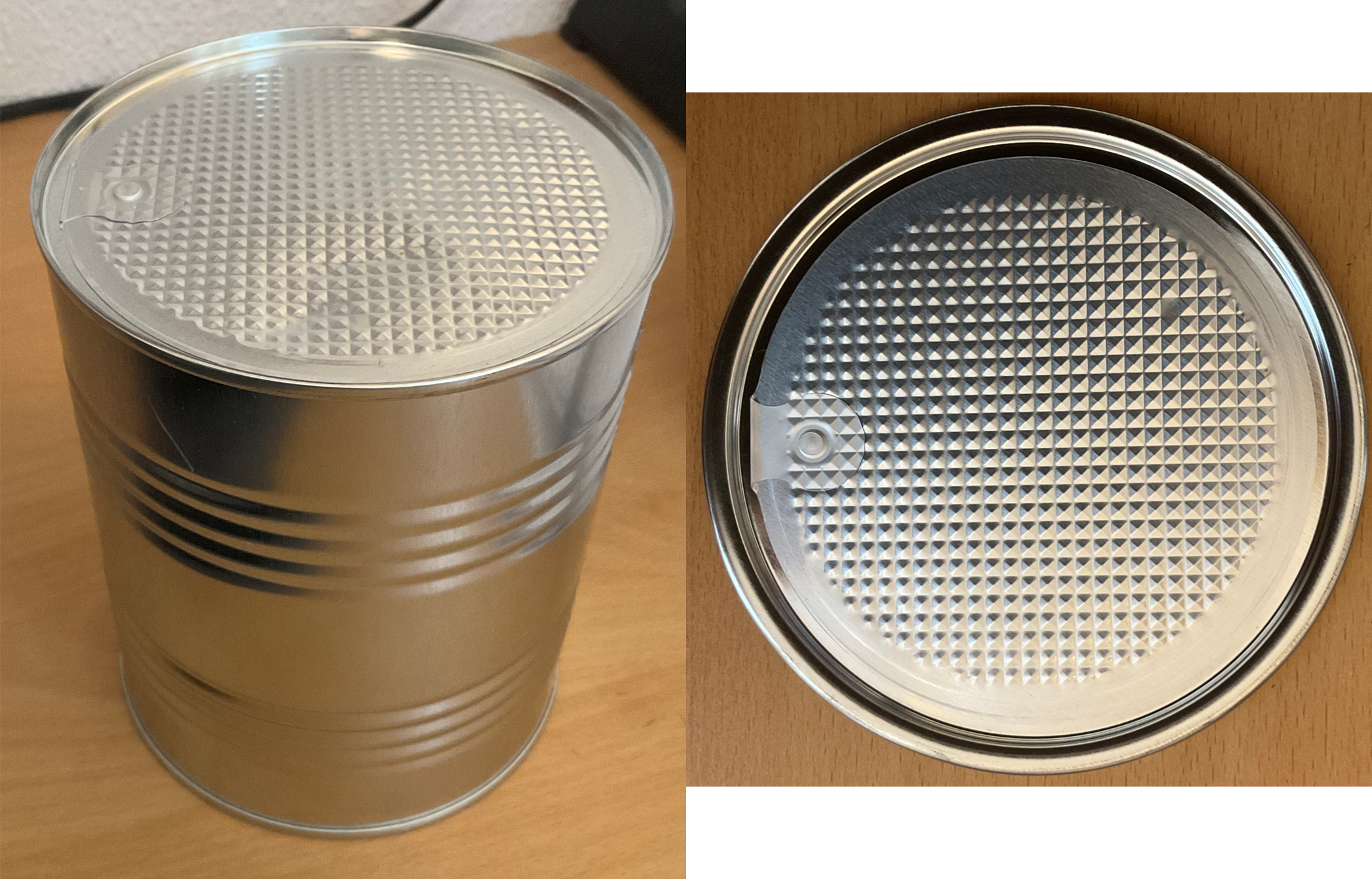

    To find how elderly interact with POE-Rivet cans
combo

After interaction they were asked 6 questions with respect to opening of the can

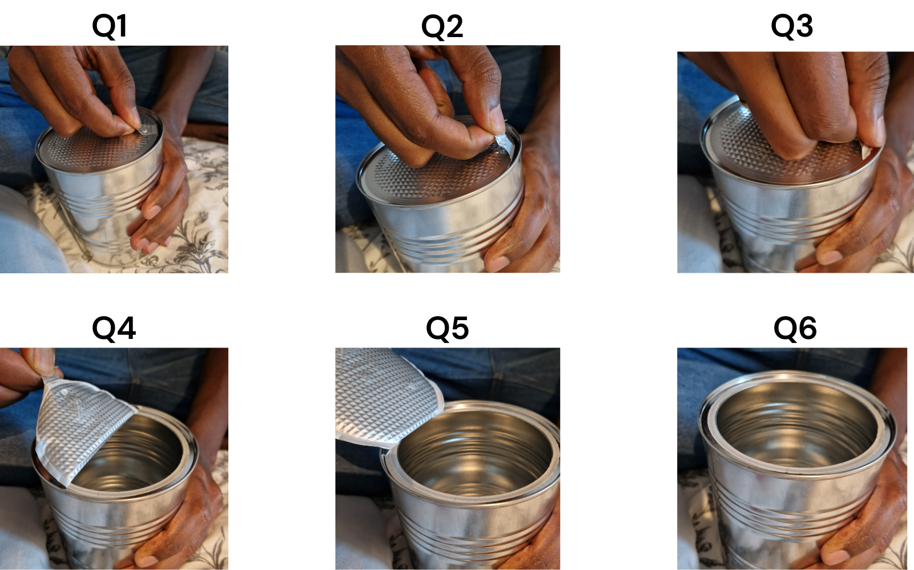

overall-steps of can opening
results-of-use-and-user-study-1

7 participants found difficult or very difficult to understand the opening.
9 participants found difficult to provide the initial force to open the can.

results-of-use-and-user-study-1

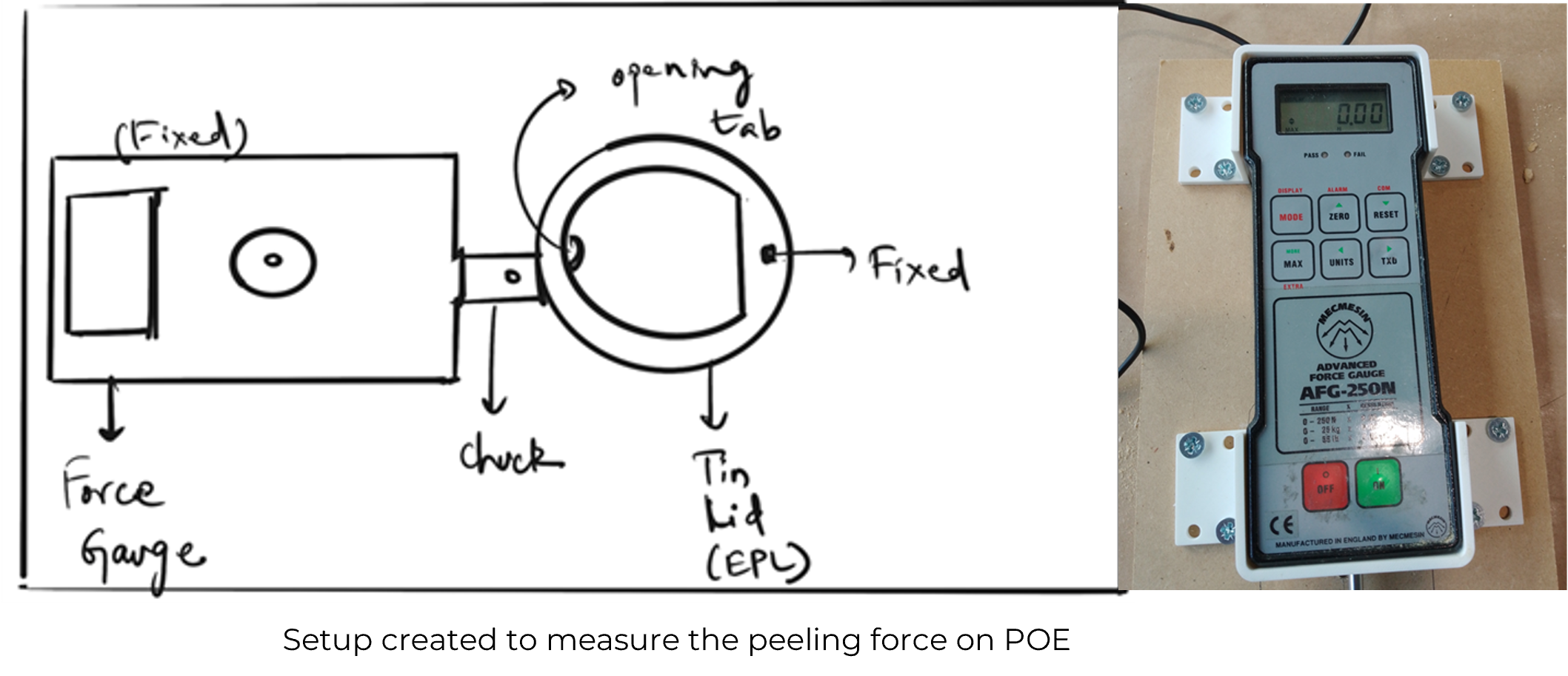

Force testing

    To measure how much force elderly people where able to afford.

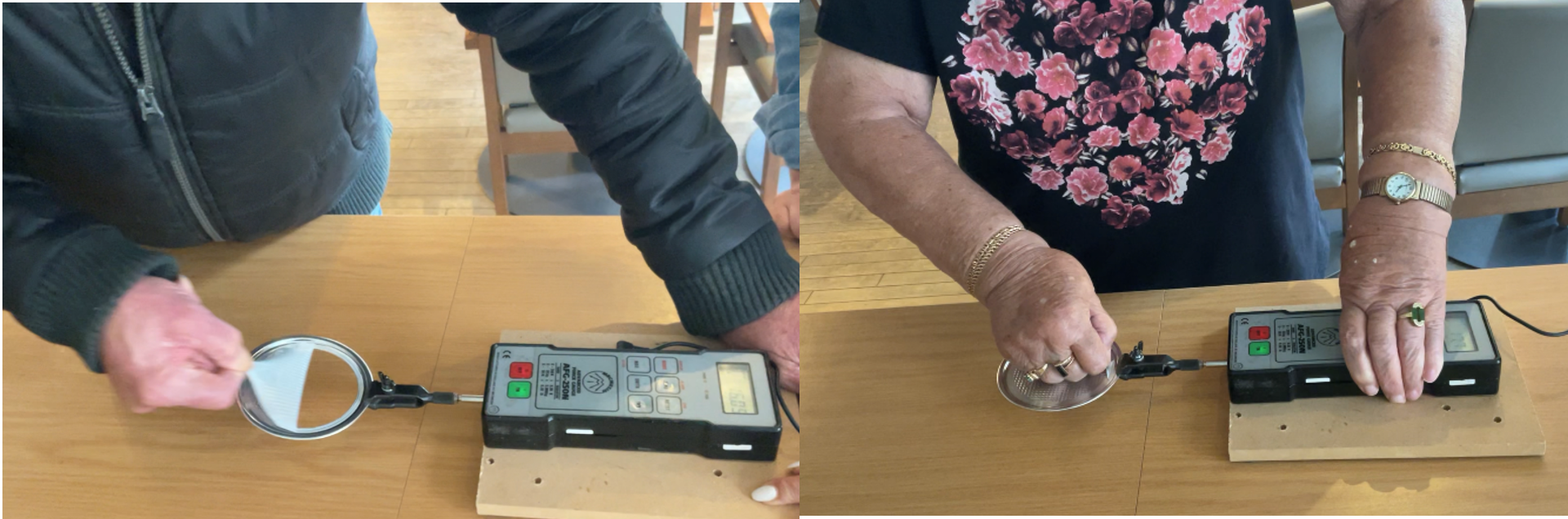

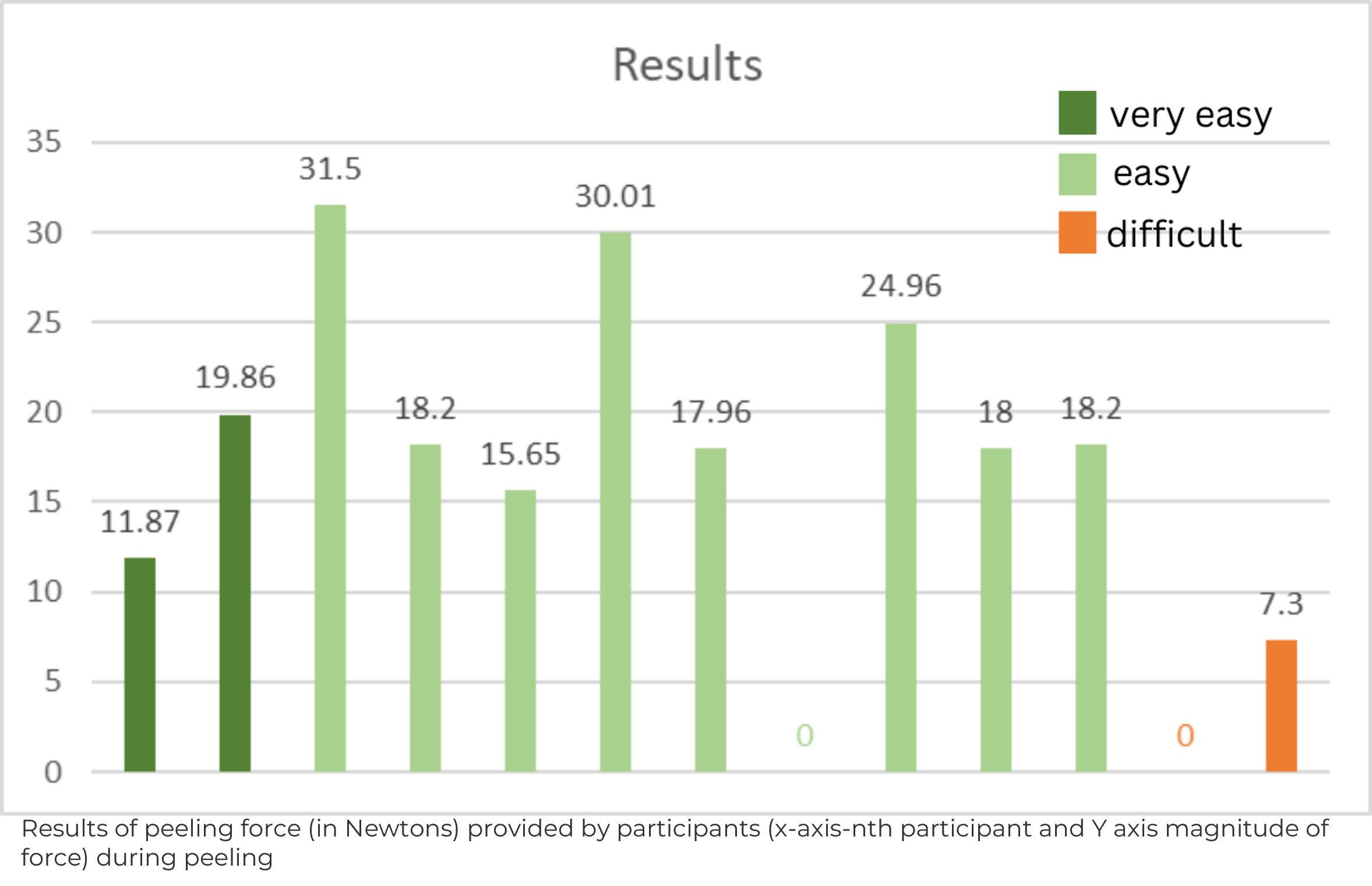

force-gauge-img participants-fg results-of-force-testing

Use and user study 2

    what was the experience after opening the can with different openings?

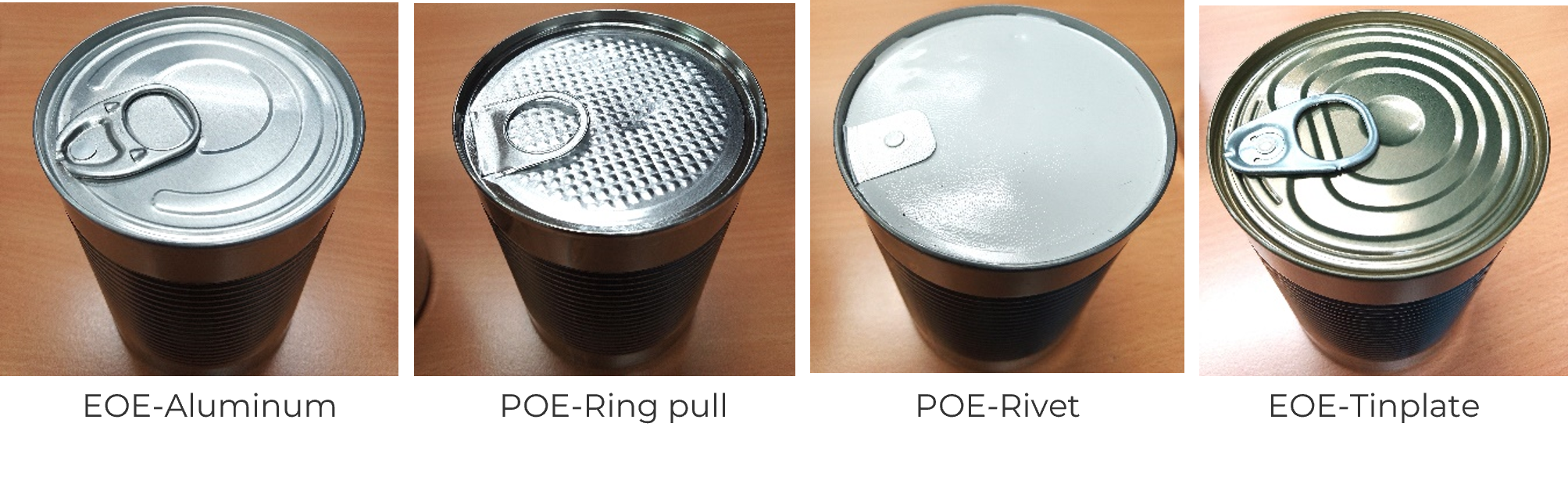

73mm-cans keywords used by participants to explain POE-Ringpull results-of-remaining-73mm-cans

  • POE-Ring pull works better than POE-rivet type for elderly people.
  • Visual (Geometrical , material, other) cues along iterative and intuitive thinking is the reason behind successful understanding and opening of POE-Ring pull.

Method of approach

pathways-for-resealing-easy-opening

Design phase

Design Challenge

“Develop innovative design ideas that push the boundaries of metal packaging while also balancing the innovation scale for elders.”

design-challenge

Testing of existing resealable options on metal cans

    To find which is the easiest resealable options(metal based) for elderly.

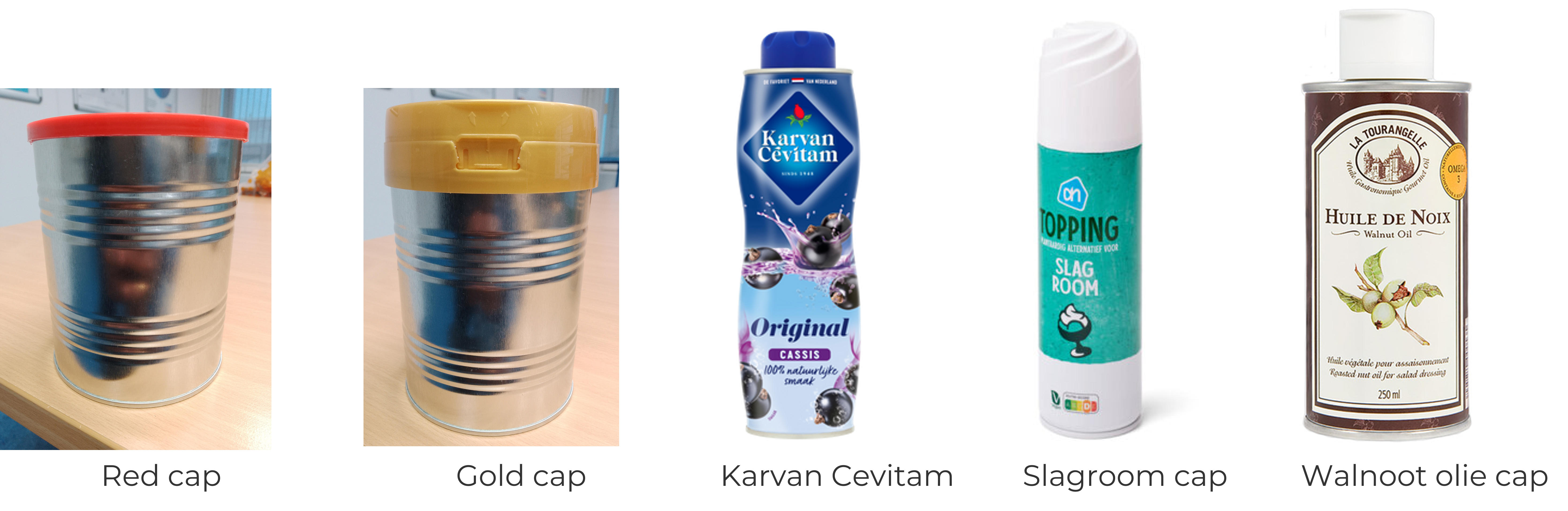

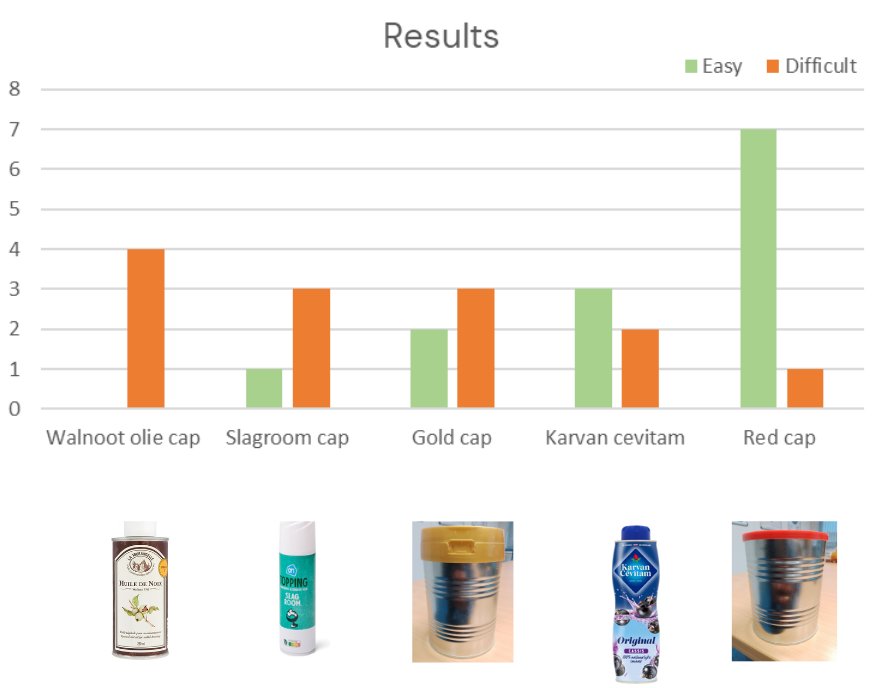

re-sealable-items results-of-resealablity-graph resealable-interactions

List of Requirements

list-of-requirements

Ideation

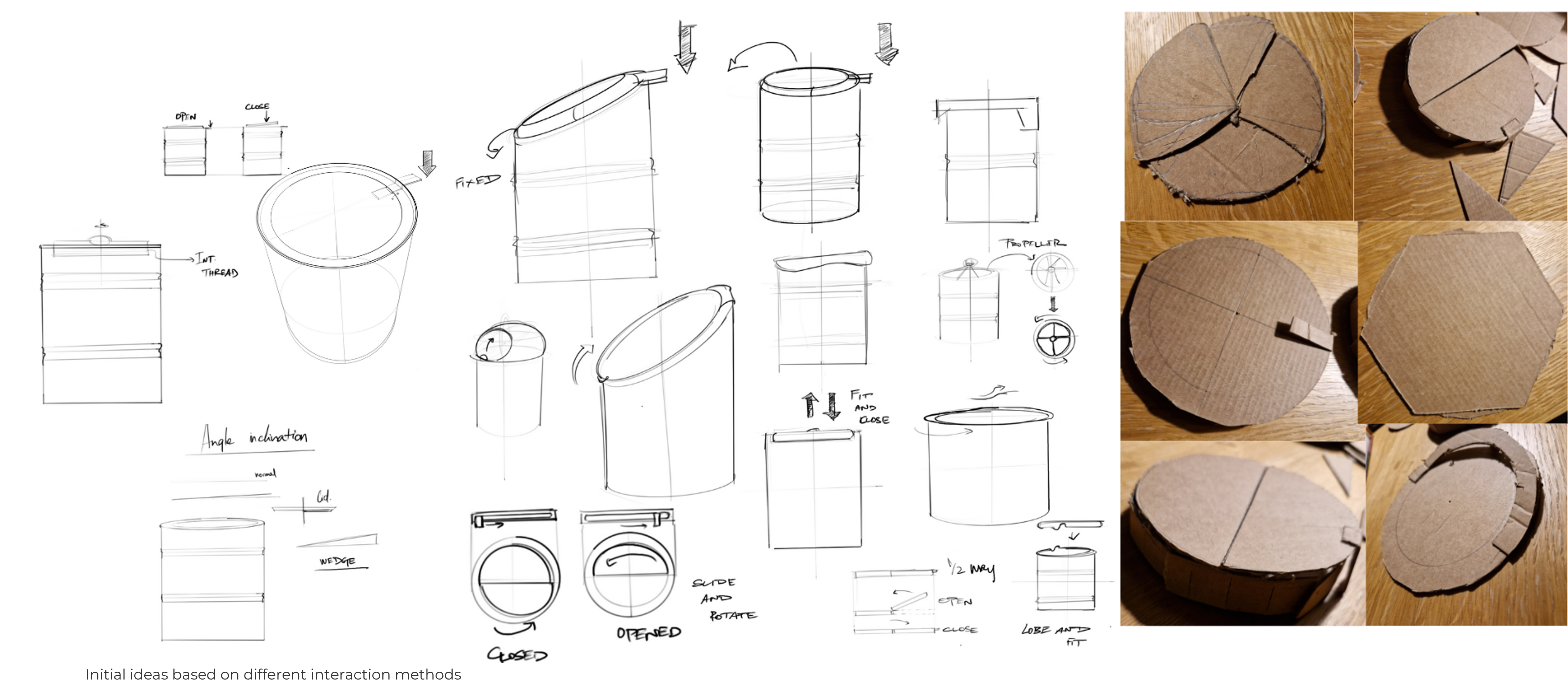

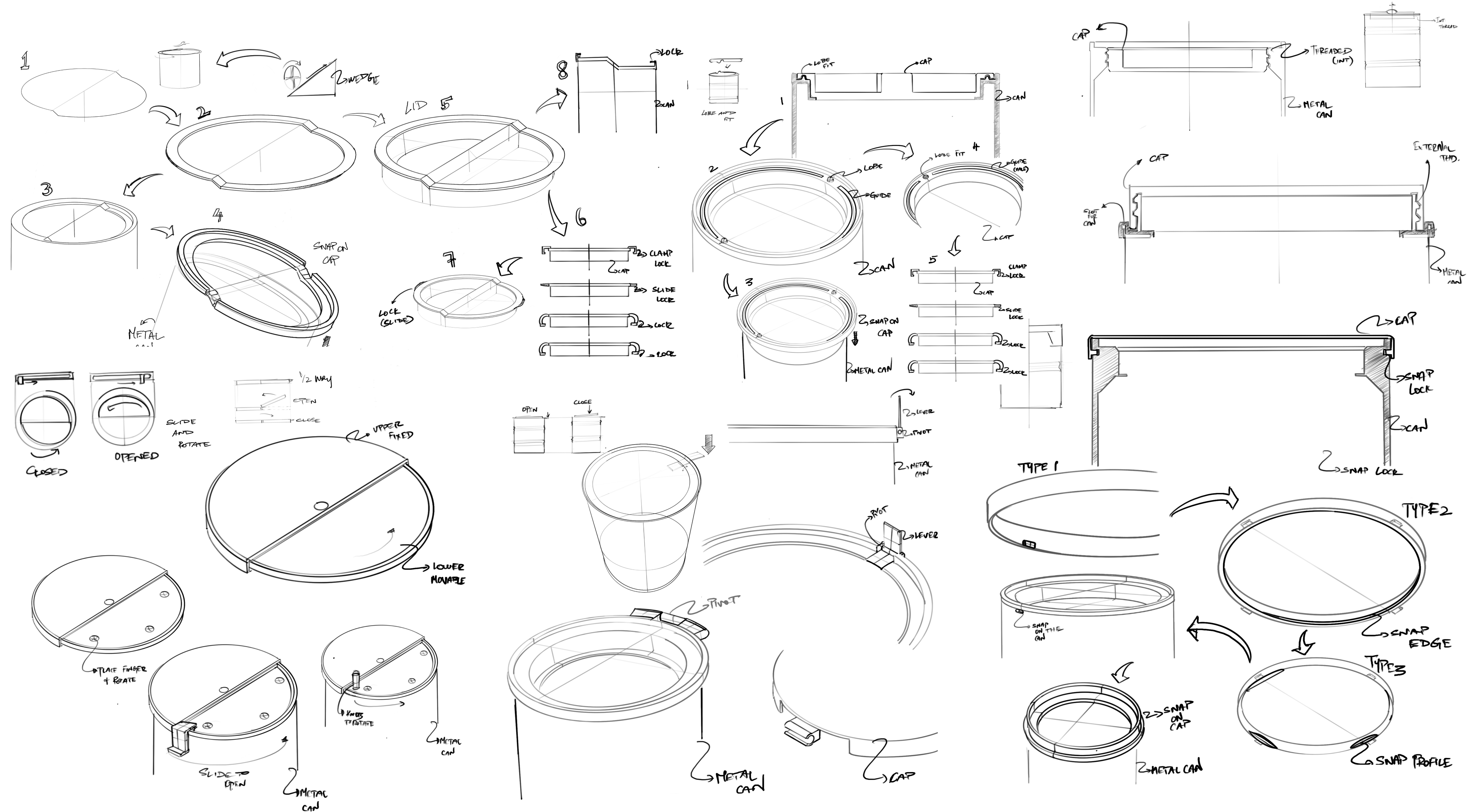

initial-ideas ideation-of-concepts

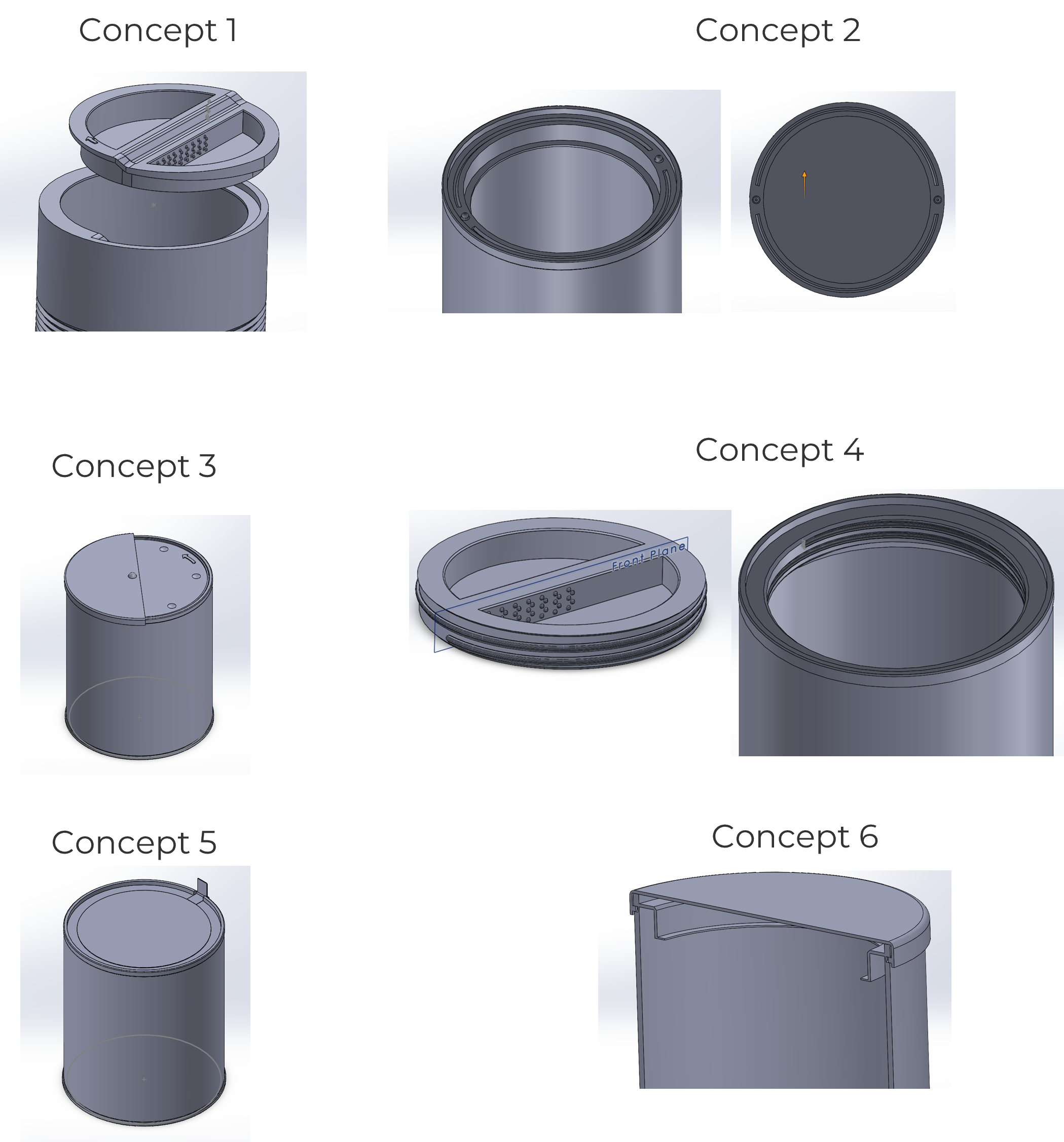

Concept Generation

concept-gnration

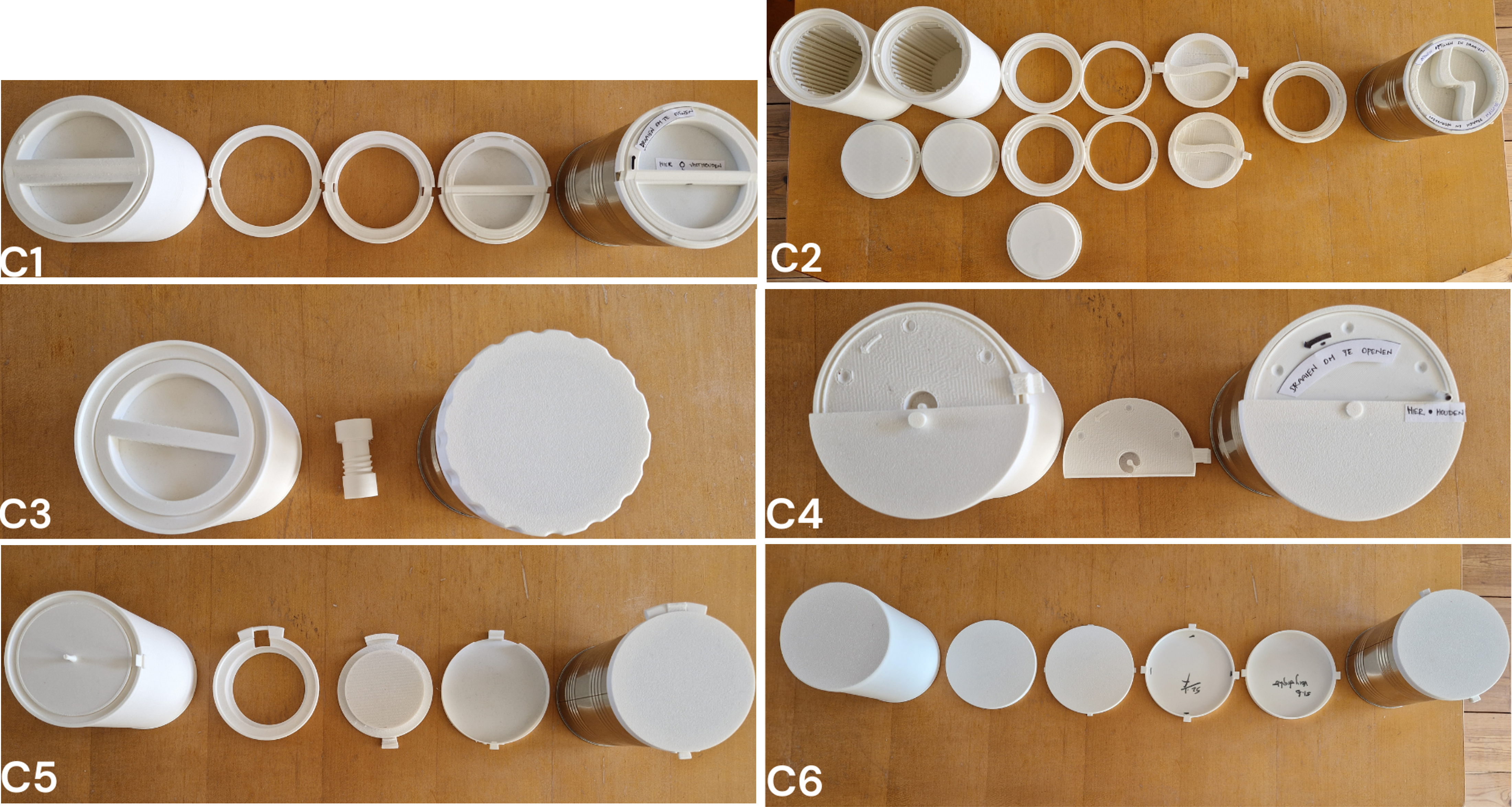

Concept Development

The concepts were developed based on different affordances such as opening,closing,grip etc.

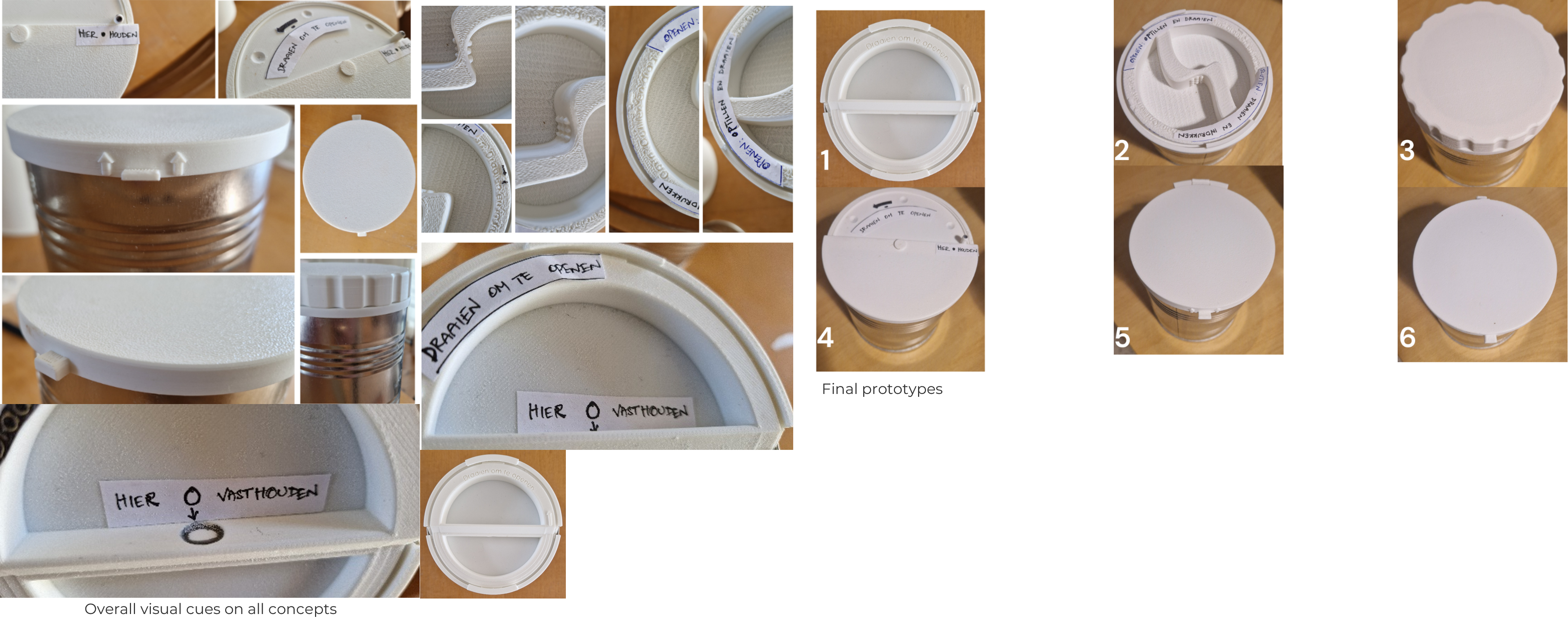

concept-development final-concepts-with-visual-cues

Testing Phase

Drop Testing

To test whether the concepts were able to withstand the drop tests.

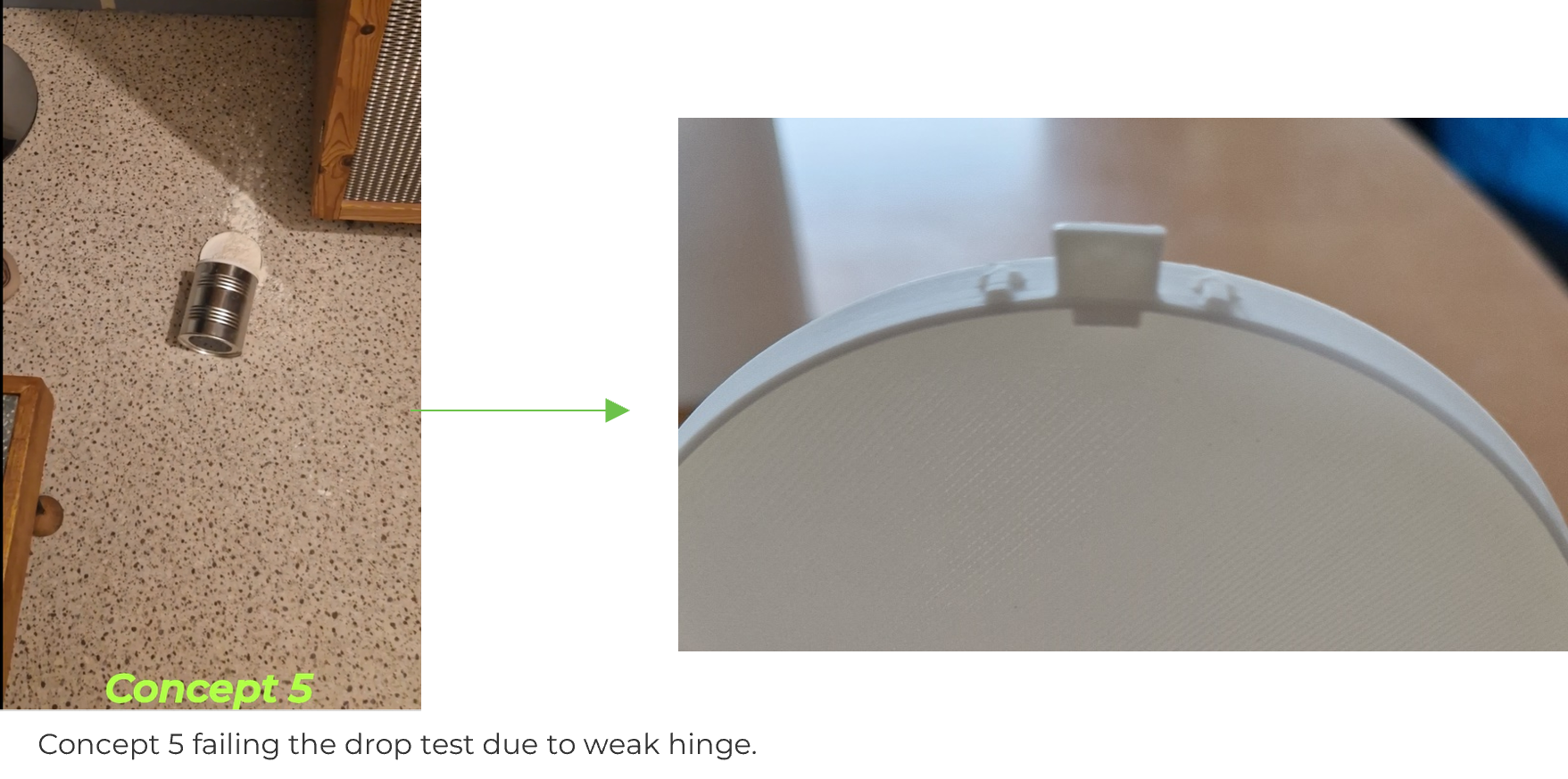

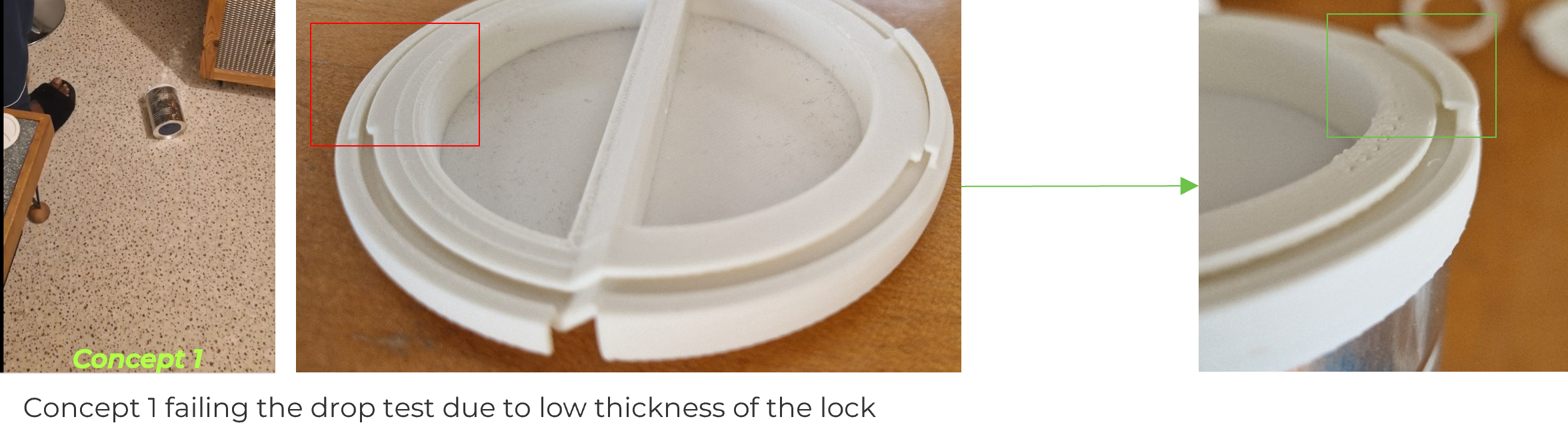

Results-of-drop-test-concept-1 Results-of-drop-test-concept-5

Usability Testing

  • To understand how elders interact with the concept cans
  • To score the concepts based on different affordances.

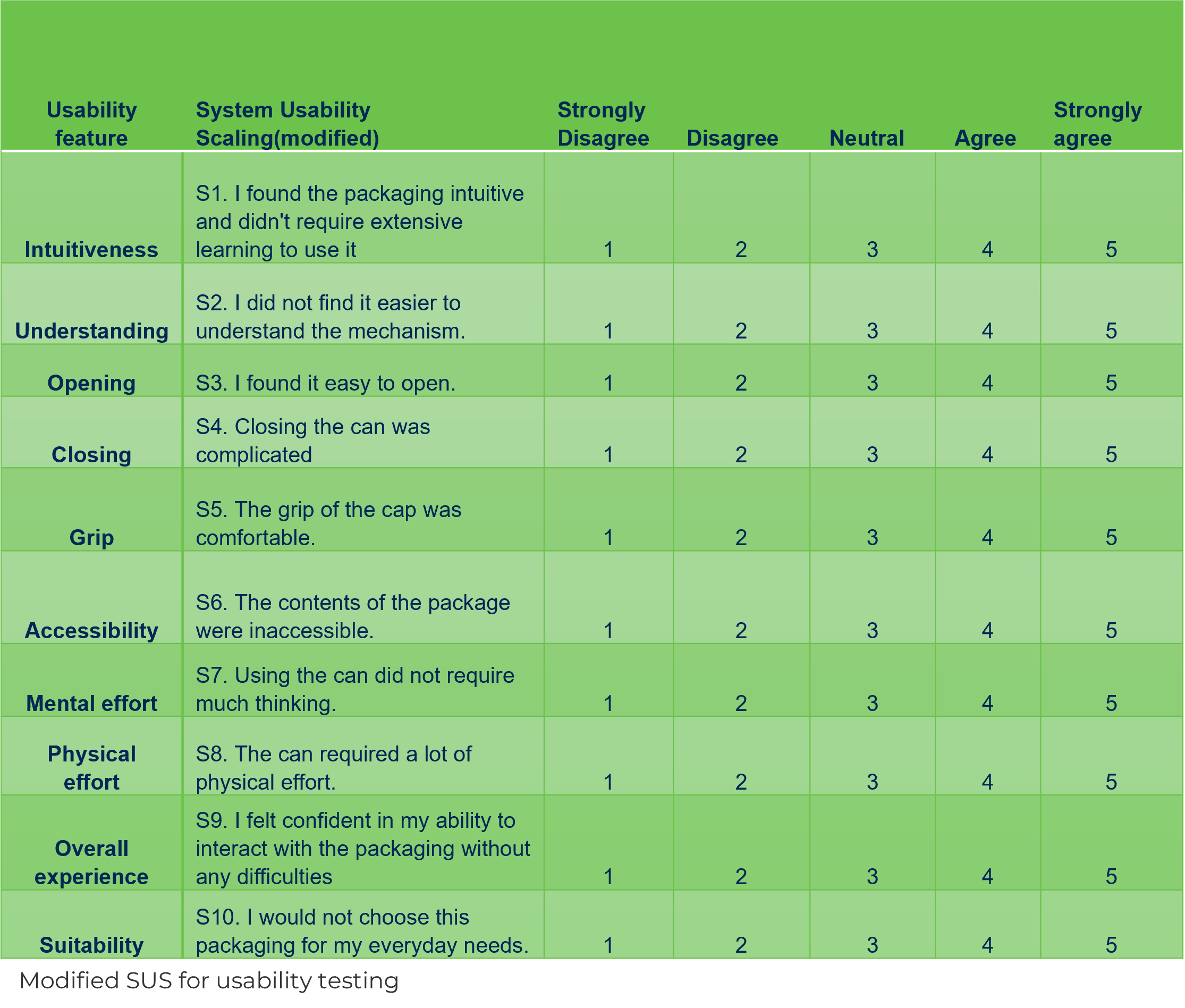

SUS results-of-usability-testing

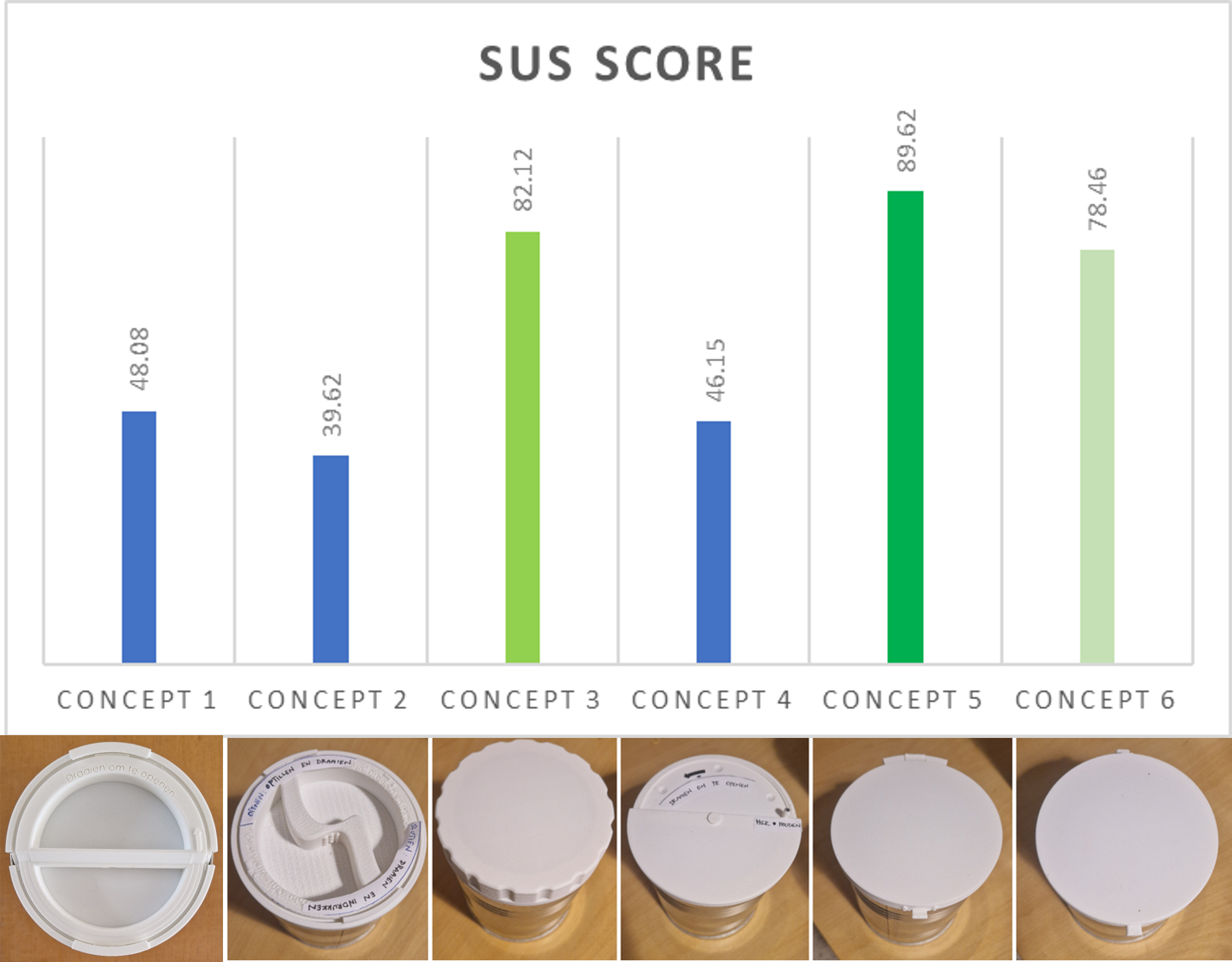

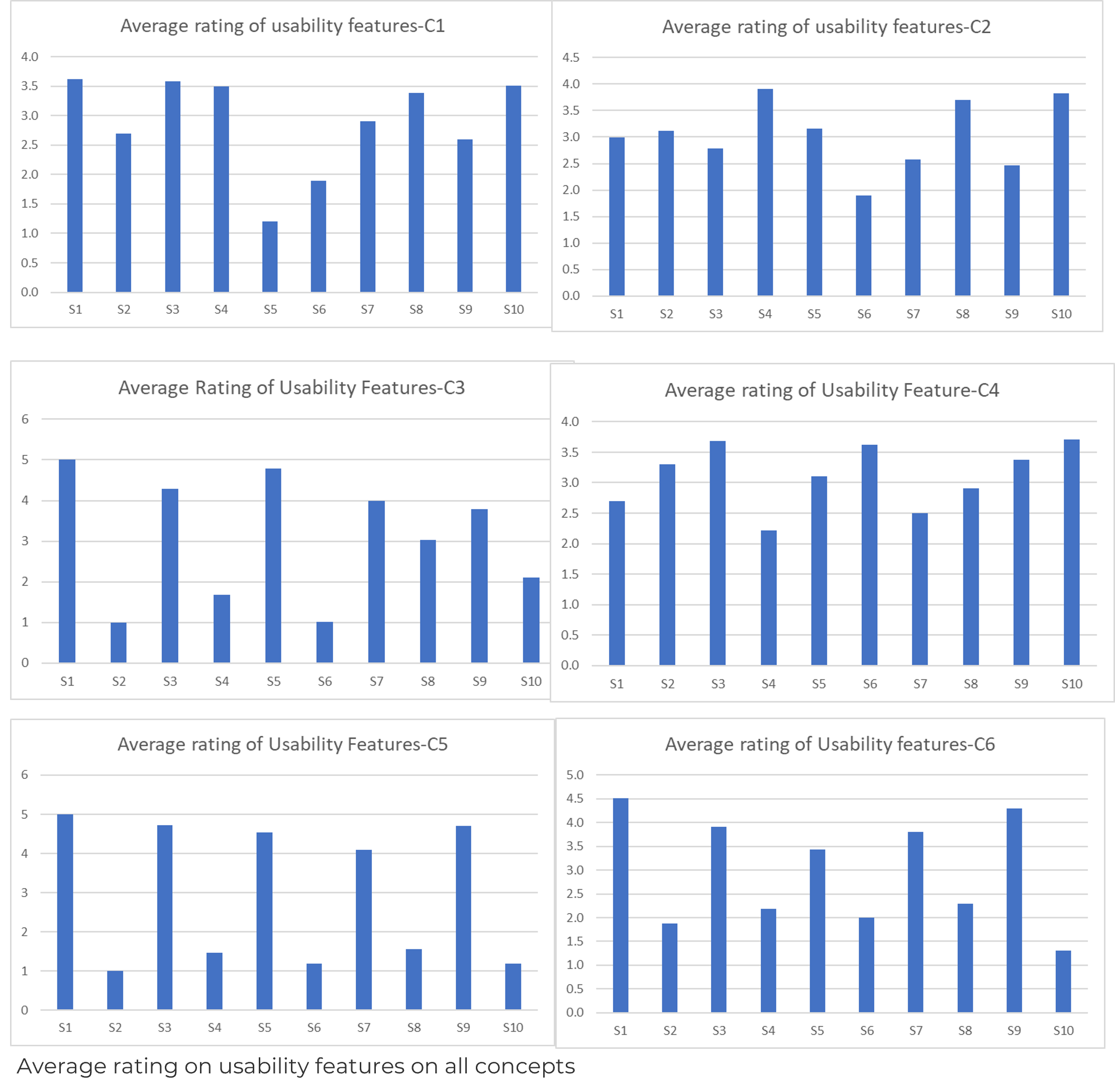

graphs-of-sus-scale Final-rating-of-all-concepts

Detailing Phase

Refine

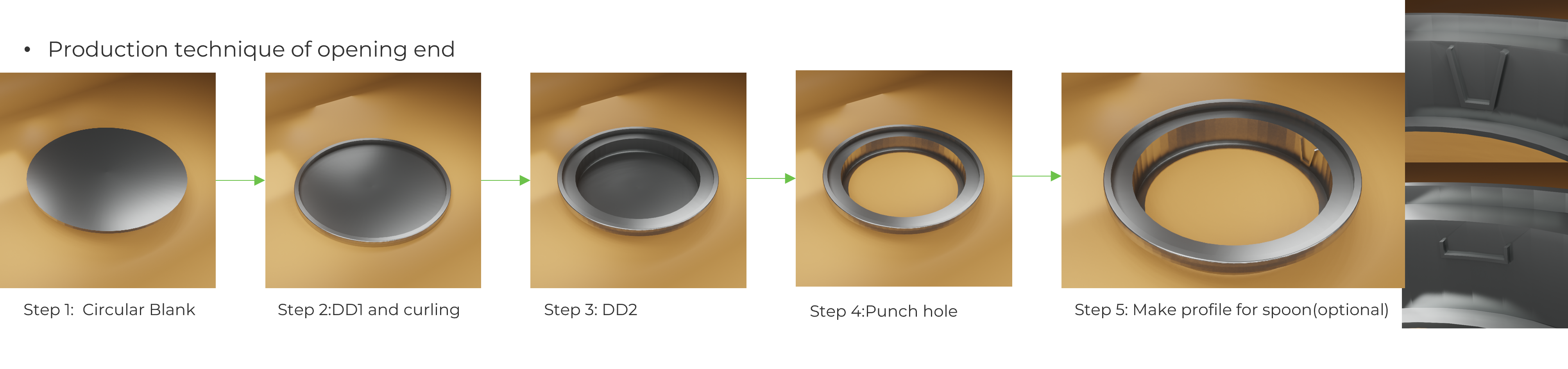

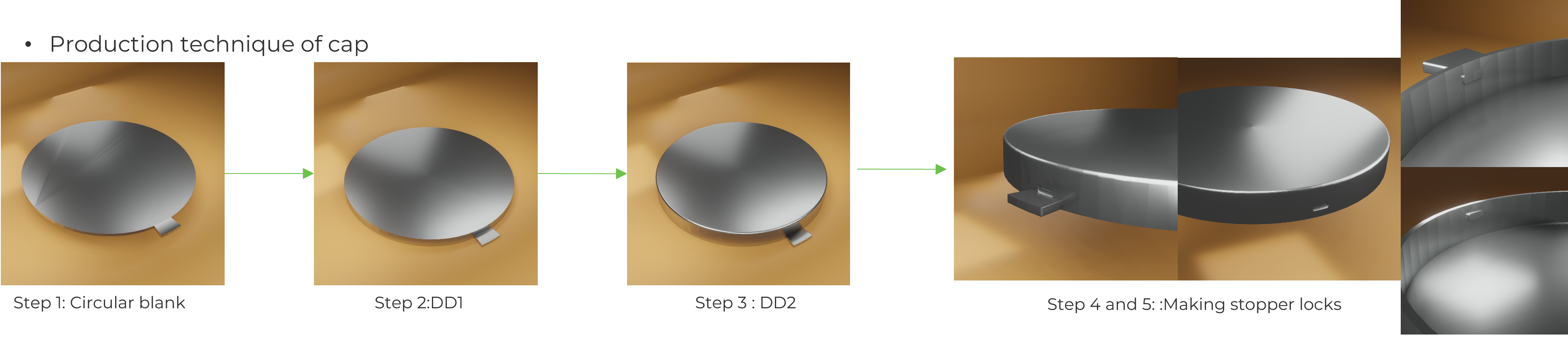

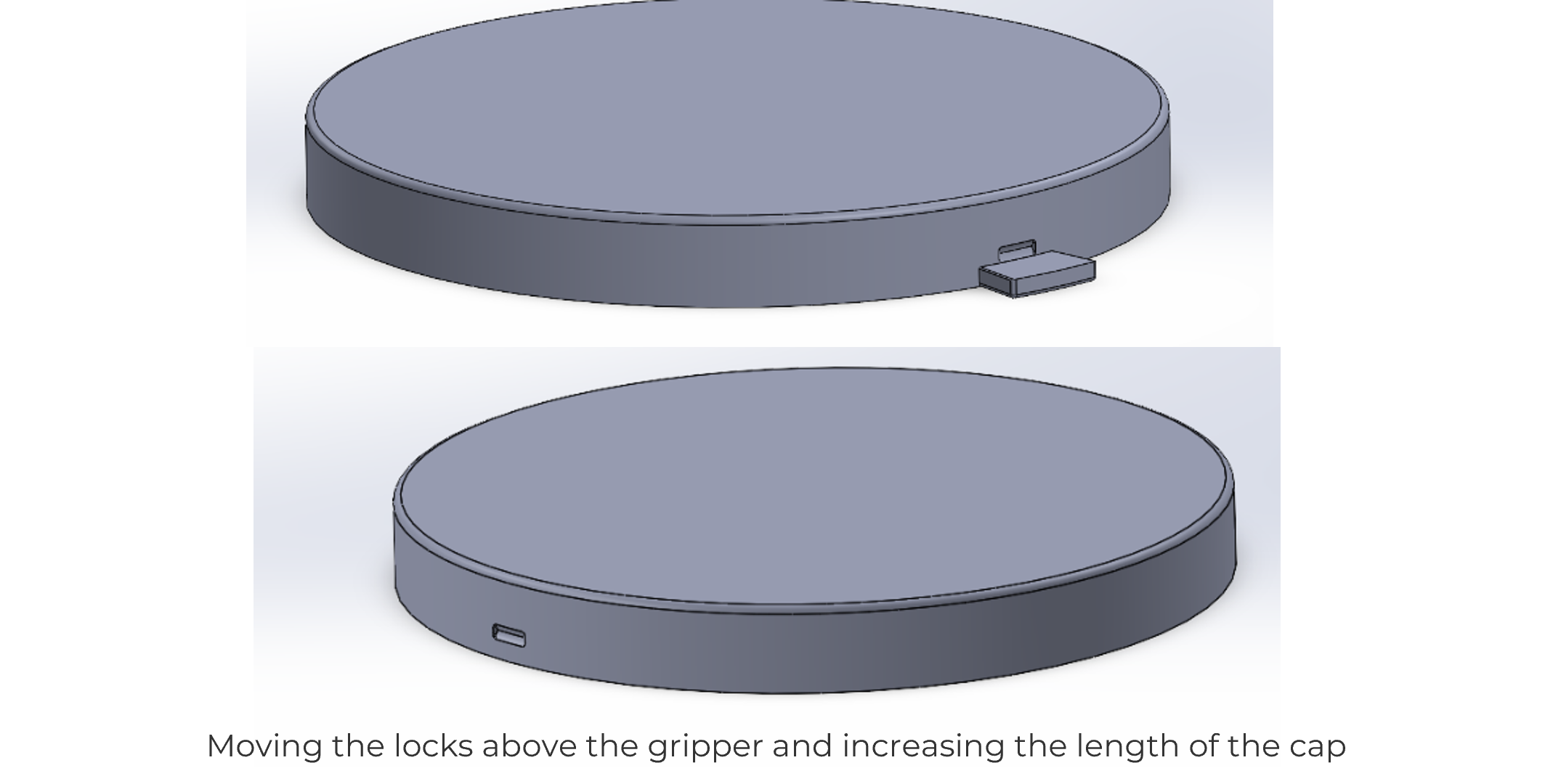

refined-cap Production-technique-of-opening-end Production-of-cap

Artwork phase

Graphics and Hypothesis creation

  • Two different hypothesis was formed

    • H1:"Elderly participants will focus more on informational content than emotional content.”

    H2: “Elderly women may prefer graphics featuring older woman over graphics featuring cultural connect”

created-graphics

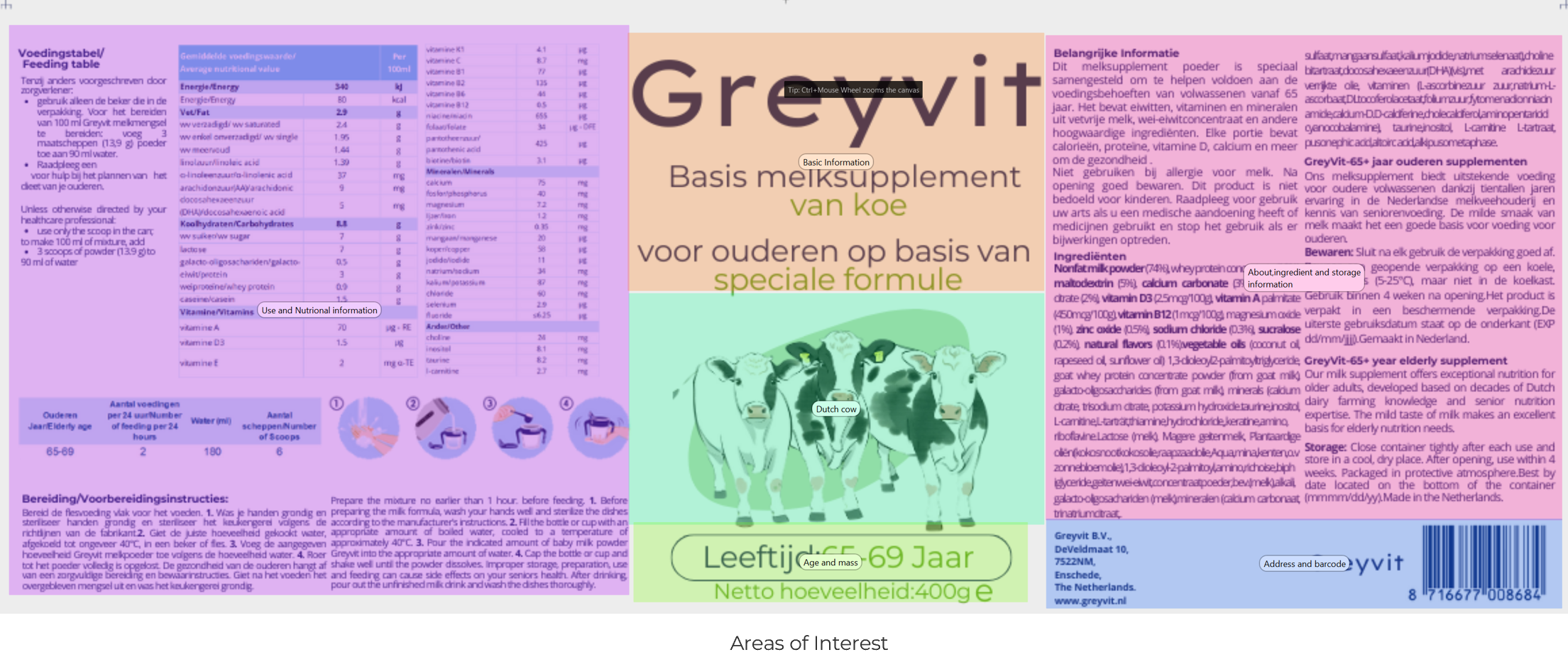

  • Different Areas of Interests( AOI)

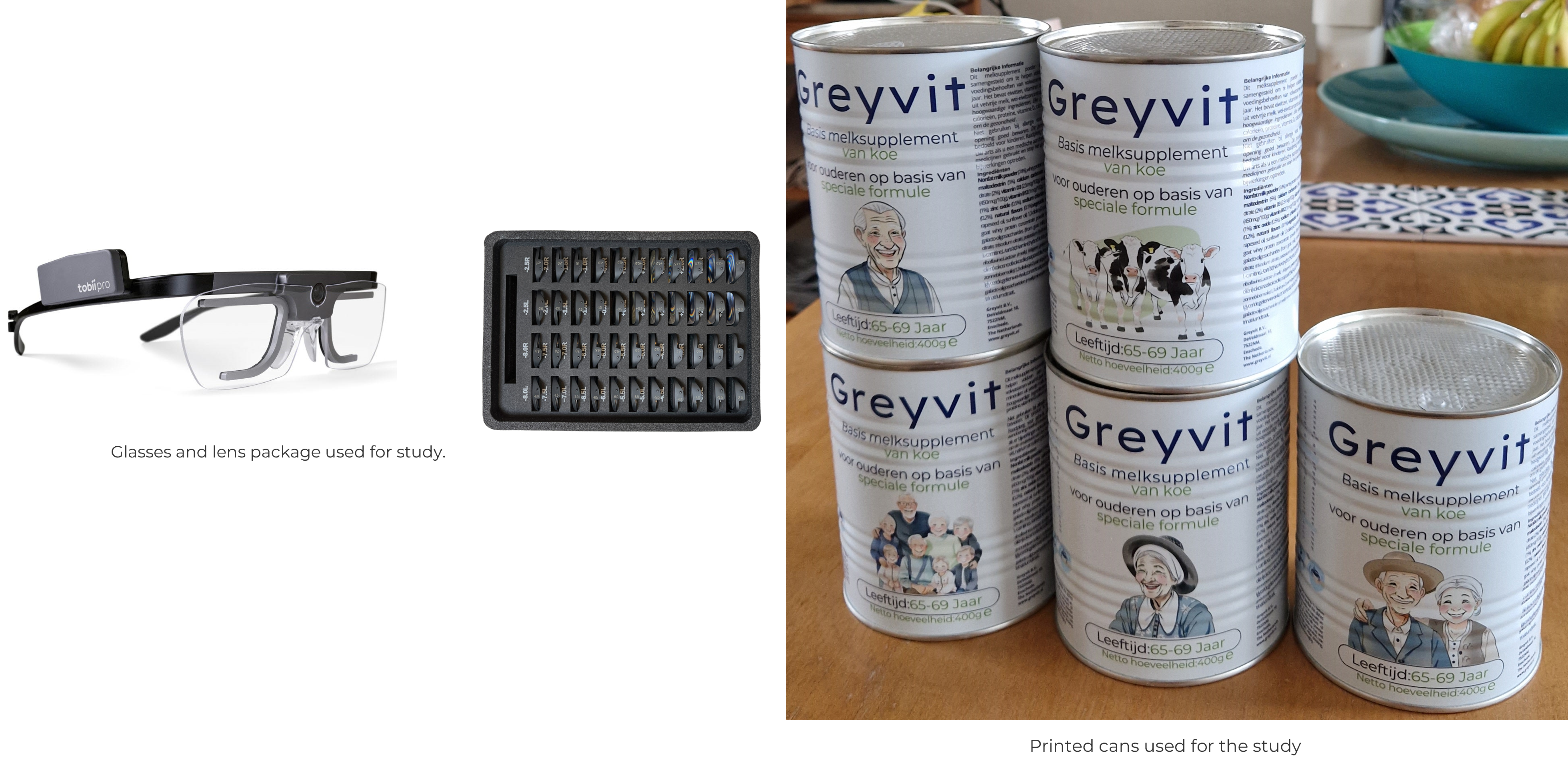

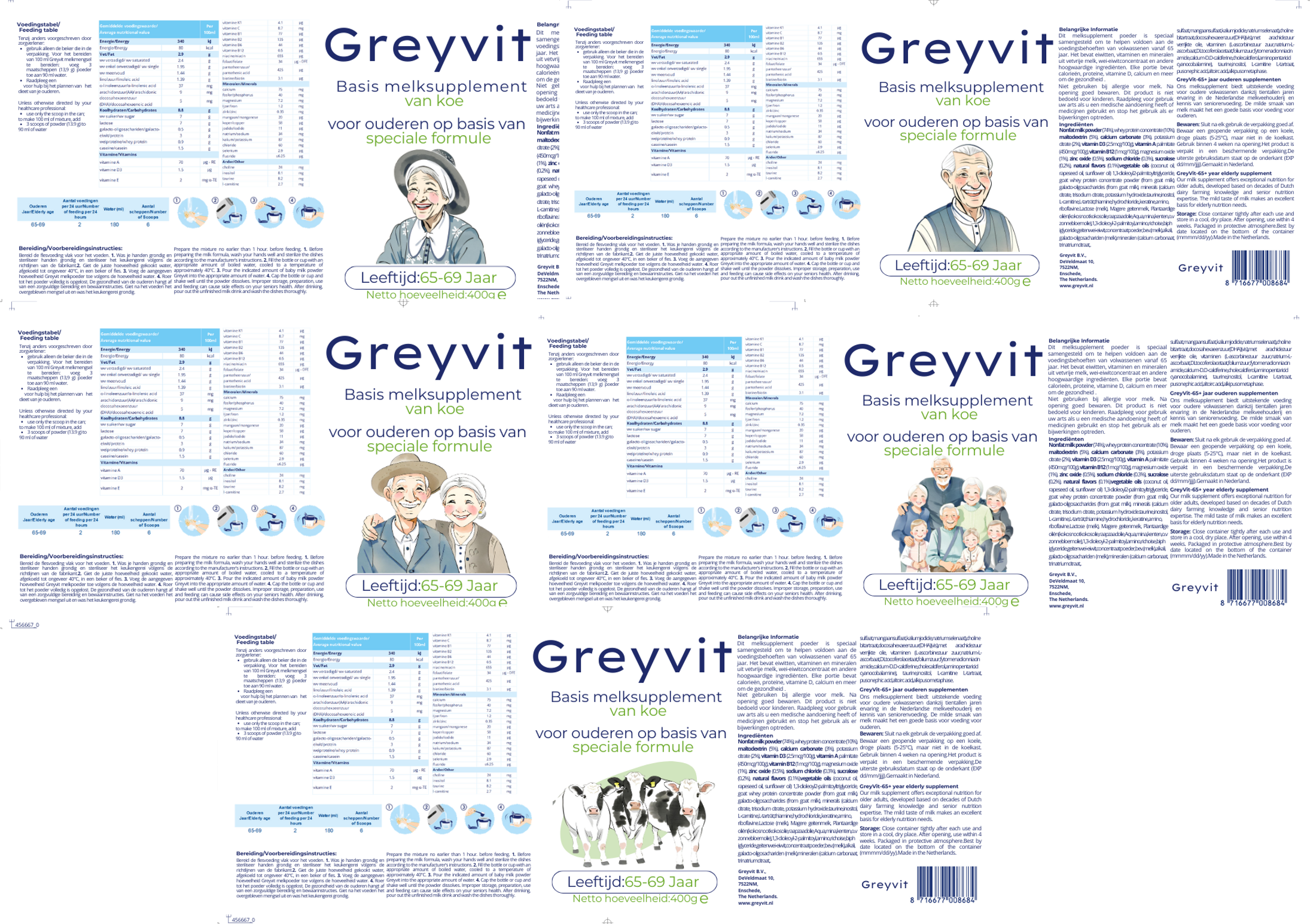

Areas-of-interest printed-cans-with-Tobi.

H1:Elderly participants will focus more on nutritional information or health benefits displayed on the cans rather than the graphics

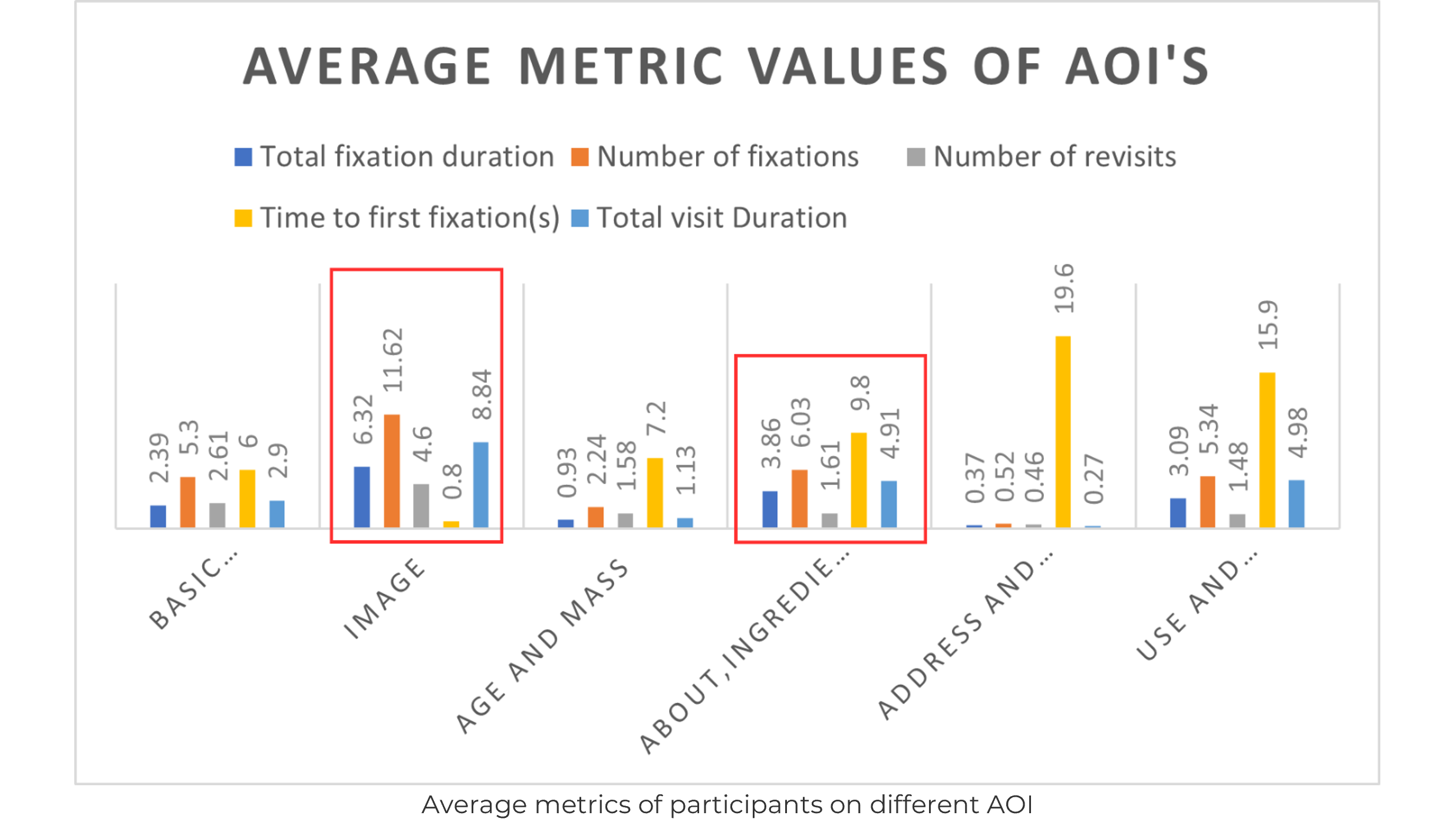

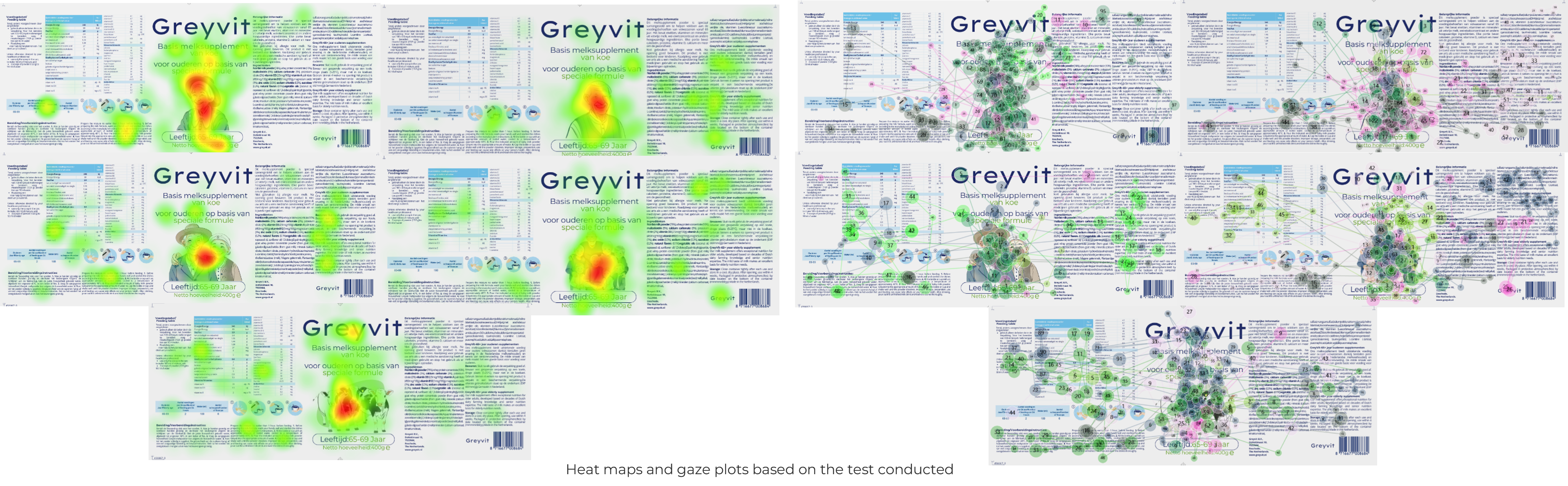

heat-maps-and-gaze-plots Average-metric-of-each-AOI

The first hypothesis H1 is false.

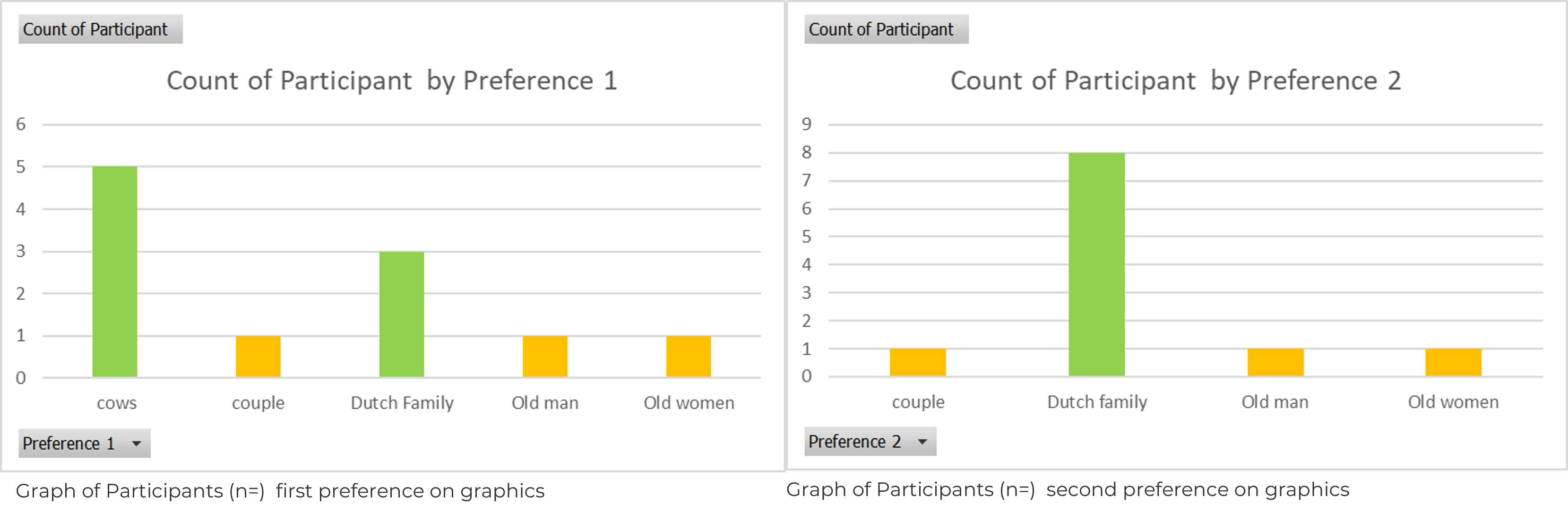

H2: Elderly women may prefer graphics featuring older woman over graphics featuring cultural connect.

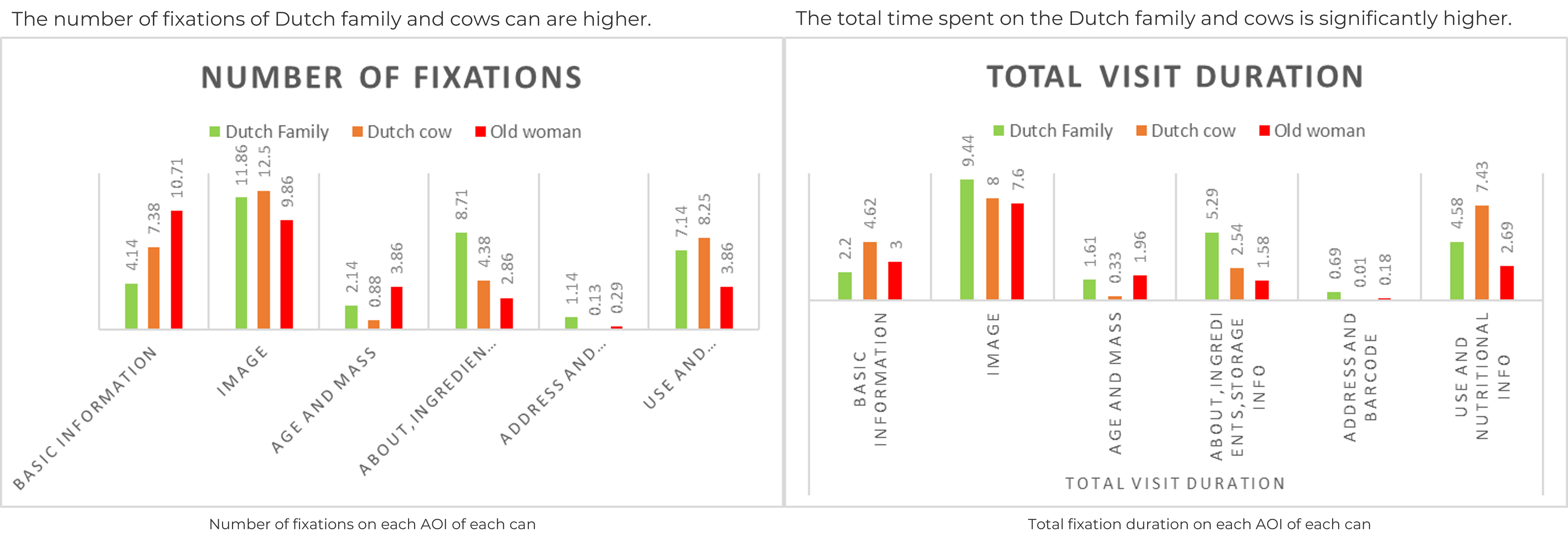

count-of-cans Metrics-on-fixation-and-Total-visit-Duration

The second hypothesis H2 is false.

Final-graphics

Conclusion

Easy opening

  • POE-Ring pull is best option among the different easy openings.It is more understandable, intuitive , easy to manipulate.

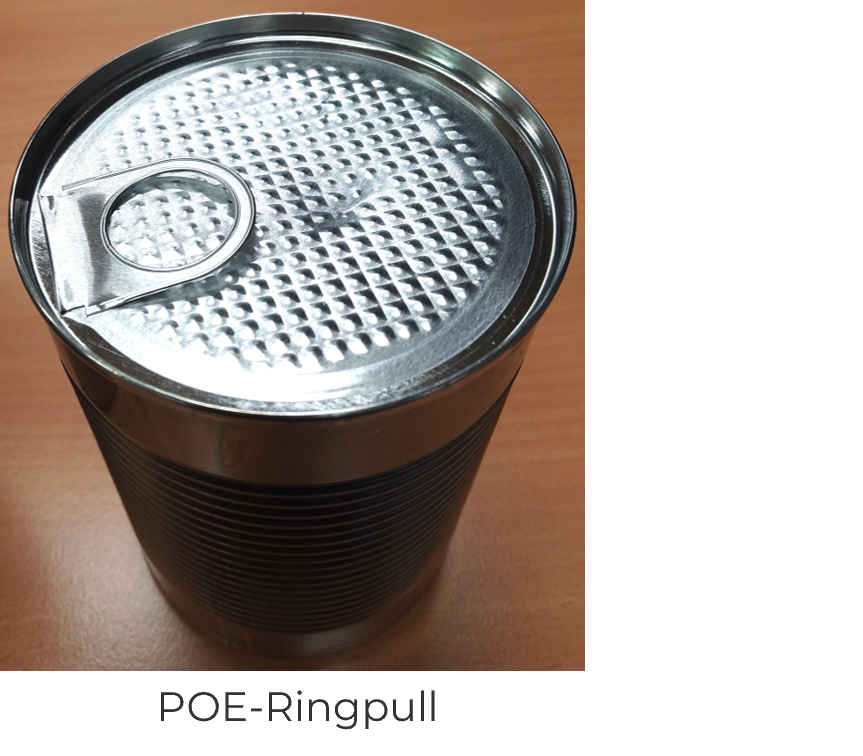

POE-Ringpull

Easy Resealing

  • Concept 6 was chosen . It was refined and production techniques were derived.

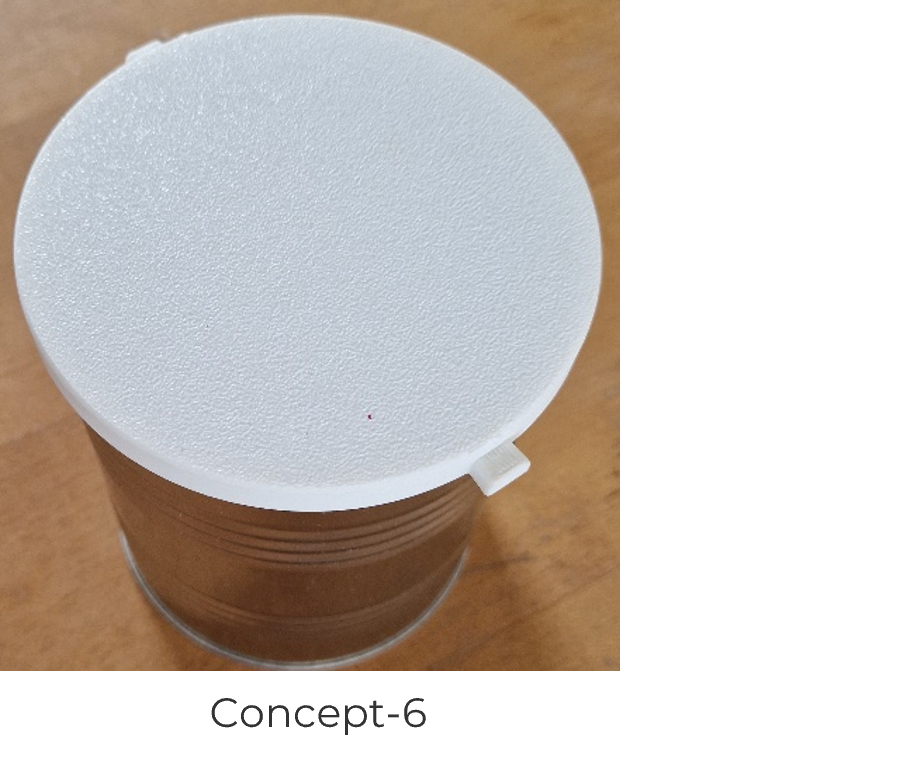

Concept-6

Graphics

  • Participants were emotionally oriented than informationally focused.
  • Cultural based artworks are liked by elderly women more than others.
Final-graphics
